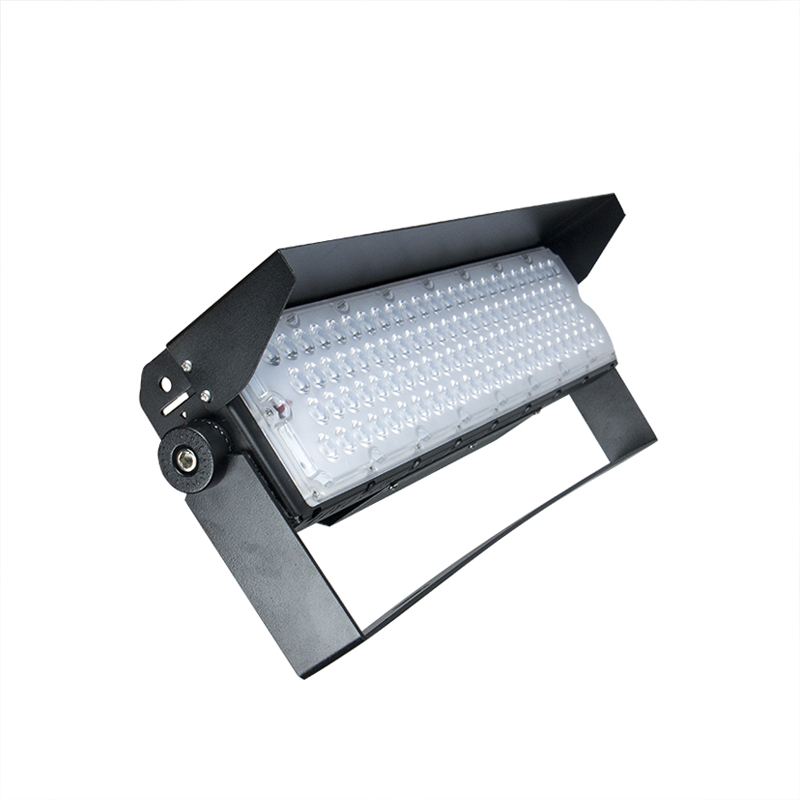

1250W LED Stadium Light

I series 250W-1500W LED Stadium Light, 5050 SMD light source design, luminous efficiency 160lm/W, with 4 options lens can realize most of sports stadium lighting solutions and high mast lighting solutions.

Main features:

Power: 250W 500W 750W 1000W 1250W 1500W.

Light efficacy 160lm/W.

Beam angles: 10° 20° 40° 60°.

Single module adjustable, the whole lamp is 180° adjustable.

Ingress Protection IP66, impact grade IK08.

With the anti-glare covers.

IES files and Dialux simulation support.

Parameters

Main features:

Power: 250W 500W 750W 1000W 1250W 1500W.

Light efficacy 160lm/W.

Beam angles: 10° 20° 40° 60°.

Single module adjustable, the whole lamp is 180° adjustable.

Ingress Protection IP66, impact grade IK08.

With the anti-glare covers.

IES files and Dialux simulation support.

Product Detail

Product Advantages:

Single module adjustable, the whole lamp bracket is thickened and reinforced, it can be easily adjustable ≥180°.

With the blackout brim anti-glare and reduce the spill light.

Professional optical lens, high light transmittance, frosted treatment, uniform irradiation, various beam angle: 10° 20° 40° 60°, accurate lighting projection.

Famous brand Meanwell driver, lightning proof, explosion proof, waterproof and dust-proof, effectively ensure the lamp LED chips continue to highlight, high stability, flicker-free.

Three-Dimensional radiator, thickened aviation aluminum, corrosion resistance, high-temperature resistance, fast heat dissipation.

High waterproof grade IP66, waterproof joint connection, safety, and sealing gasket.

Applications:

Outdoor sports arena, Outdoor venues, Football field, Tennis court, Hockey field, Rugby pitch, Riding arena, Volleyball court, Outdoor water polo, Training pitch, Training fields, Backyard lighting, Ski resorts, Parking lot, Parking squares, Construction Lighting, Container yard, Airport Lighting, and other outdoor lighting places.

Parameters:

Model I YXR-QC-	250W-I	500W-I		750W-I	1000W-I	1250W-I		1500W-I
Power	250W	500W		750W	1000W	1250W		1500W
Lumen	40000lm	80000lm		120000lm	160000lm	200000lm		240000lm
Efficacy	160lm/W
CCT	2800-3000K; 3000-3200K; 4000-4500K; 5000-5500K; 6000-6500K
CRI	≥80Ra
LED	96pcs San'an/Lumileds 5050 SMD per module
PF	>0.97
Input Voltage	AC100-277V(Normal); AC100-305V(Meanwell)
Frequency	50~60Hz
THD	<20% (Typical : 10%)
Weight(kg)	5.2	12.8		17.5	22.3	27.3		32
Sizes(mm)	590200190	630280240		630435240	630590240	630745240		630900240
Beam Angle	10°/20°/40°/60°
Work Temp	-35~55℃
Humidity	15%~90% RH, no condensing
Finish	Anodizing treatment process
Life span	≥50,000 Hrs (LM70 @ 35℃ )
IP Grade	IP66
IK Grade	IK08
Product Material
Power Wire			Body material				Electronic safety grade
Rubber cable(3*1mm²) L=0.5m			PC lens + Aluminum housing				Class I
