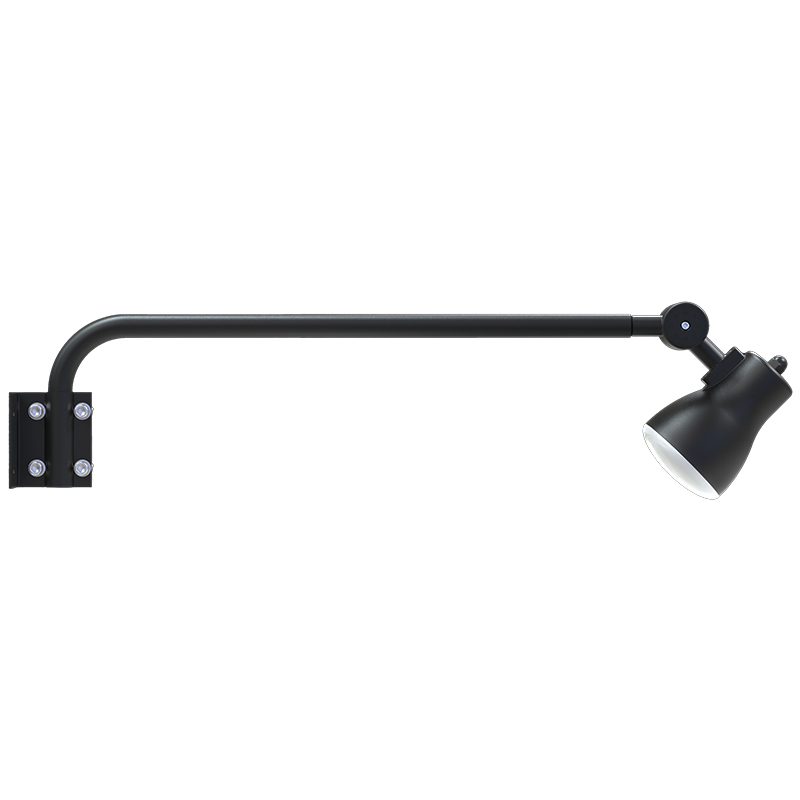

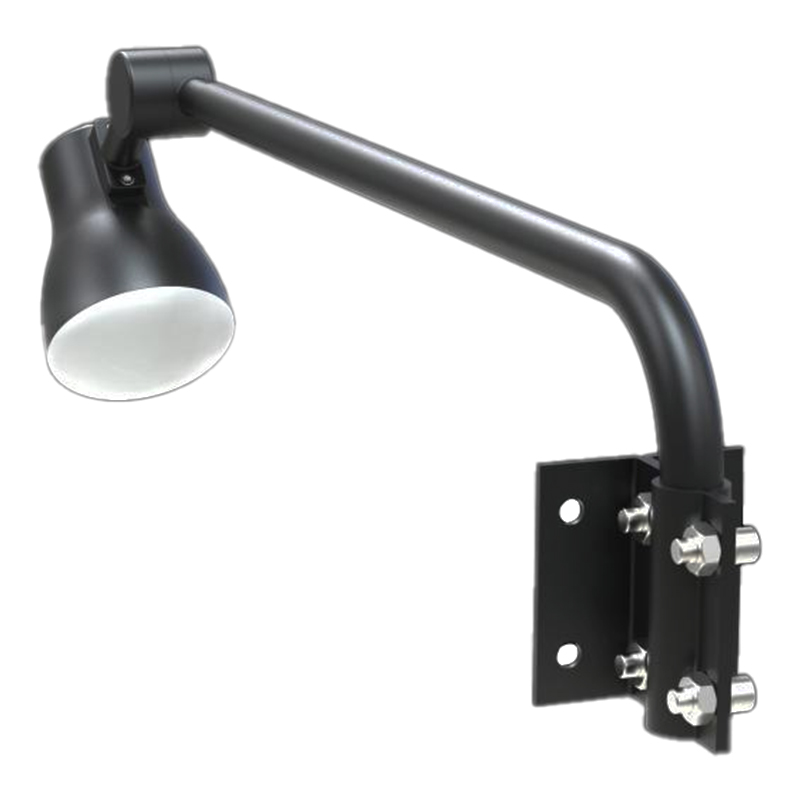

36W LED Billboard Light

A series of 36W LED Billboard Lights, 3030 SMD light source design, high luminous efficiency 140lm/W, with beam angle 110°, Warm white 2900-3100K, neutral white 4800-5200K (Dual color temperature), perfect for illuminating signage, great for adding illumination and accent lighting to business signs, entryways, and patios.

Main features:

Power: 36W.

Light efficacy: 140lm/W.

Beam angles: 110°.

The whole lamp is 234° adjustable.

Ingress Protection IP66, impact grade IK08.

IES files and Dialux simulation support.

Parameters

Main features:

Power: 36W.

Light efficacy: 140lm/W.

Beam angles: 110°.

The whole lamp is 234° adjustable.

Ingress Protection IP66, impact grade IK08.

IES files and Dialux simulation support.

Product Detail

Advantages

1. Original unique design, simple, generous with great practical function, suitable for most advertising signage applications.

2. Lamp head can be rotated 234 degrees horizontally and 360 degrees vertically to ensure that the light is projected in the correct direction.

3. With 2 options of color temperature, warm white 2900-3100K, neutral white 4800-5200K, switchable.

4. Factory sealed water tight and IP66 rated for protection against high-pressure water jets and outdoor elements.

5. Made of high precision ADC12 aluminum alloy, coated with waterproof powder coating, anti-corrosion, durable.

Applications

This commercial-grade billboard light is perfect for illuminating signage, great for adding illumination and accent lighting to business signs, entryways, patios, etc, adding a decorative touch wherever it is placed.

Parameters

Model	YXR-AFL-36W-A
Power	36W
Lumen	5040lm
Efficacy	140lm/W
CCT	Warm white 2900-3100K, neutral white 4800-5200K
LED	84pcs 3030 (Dual color temperature)
Power Factor	>0.95
CRI	≧80Ra
Input Voltage	AC85-265V
THD	15%
Weight	2.4 kg
Sizes(mm)	L825W173H110 mm
Product Color	Black or White
Beam Angle	110°
Work Temp	-20~40℃
LED Junction Temp	≤115℃
Humidity	25%~90% no condensing
Span life	≧50000H
IP Grade	IP66
IK Grade	IK08
Product Material
Power Wire		Body material	Electronic safety grade
Rubber cable(3*1mm²) L=0.5M		ADC12 Aluminum housing	Class I
